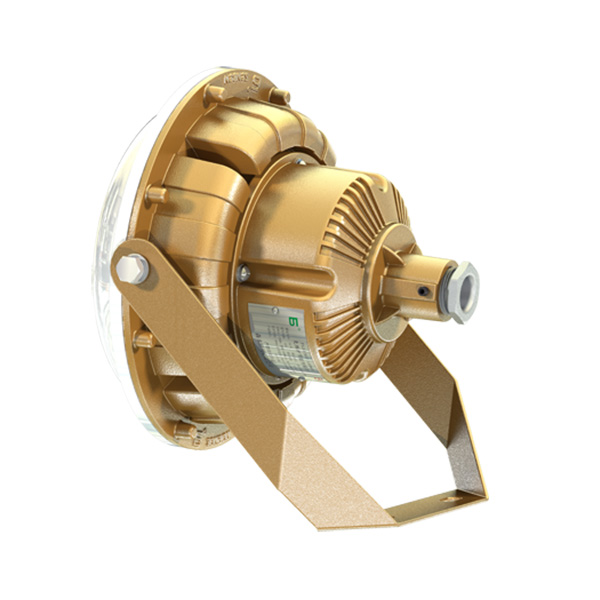

FGA1306 Series Explosion-proof LED Low Bay/High Bay Light
Features• Die Cast Aluminum Housing, High Performance Heatsink
• Impact-resistant PC Diffuser, Frosted
• Corrosion-proof Powder Coating
• Waterproof and Dustproof
• Entry 3/4” G, ø7~12.5mm Cable Diameter
• High Performance SMD LEDs
• Input Voltage 180~260VAC/100-277VAC, 50/60Hz
• PF ≥ 0.95
• Emergency Battery Backup optional
• 5 Years Warranty
• Installation: Wall/Bracket/Pole Mount, Pipe Hanging
Description
Classifications
Zone 2 ; 21 & 22
Class I/II, Division 2
Ex-marking: Ex nR II CT6/T5 Gc; Ex tb IIIC T80℃/T95℃ Db
IP67
WF2
CCT 5700K Standard, Others Optional
Ambient Temperature –40℃~55℃
Specifications
Wattage | Wattage | Lumens | Dimension DxHxL mm | Weight | Mount Height |
FGA1306-LED20 | 20W | 2980 lm | 186x180x142 | 1.2~1.5 KGS | 2~3 m |
FGA1306-LED20/Y | 20W | 2980 lm | 186x180x142 | 1.2~1.5 KGS | 2~3 m |
FGA1306-LED30 | 30W | 4500 lm | 186x180x142 | 1.2~1.5 KGS | 2.5~4 m |
FGA1306-LED30/Y | 30W | 4500 lm | 186x180x142 | 1.2~1.5 KGS | 2.5~4 m |
FGA1306-LED40 | 40W | 5960 lm | 186x180x142 | 1.2~1.5 KGS | 3~5 m |
FGA1306-LED40/Y | 40W | 5960 lm | 186x180x142 | 1.2~1.5 KGS | 3~5 m |
FGA1306-LED50 | 50W | 7450 lm | 215x202x187 | 1.7~2.1 KGS | 3~6 m |
FGA1306-LED50/Y | 50W | 7450 lm | 215x202x187 | 1.7~2.1 KGS | 3~6 m |
FGA1306-LED60 | 60W | 8900 lm | 215x202x187 | 1.7~2.1 KGS | 4~6 m |
FGA1306-LED60/Y | 60W | 8900 lm | 215x202x187 | 1.7~2.1 KGS | 4~6 m |
FGA1306-LED70 | 70W | 10300 lm | 230x234x202 | 2.0~2.7 KGS | 4~7 m |
FGA1306-LED70/Y | 70W | 10300 lm | 230x234x202 | 2.0~2.7 KGS | 4~7 m |
FGA1306-LED80 | 80W | 11800 lm | 230x234x202 | 2.0~2.7 KGS | 5~8 m |
FGA1306-LED80/Y | 80W | 11800 lm | 230x234x202 | 2.0~2.7 KGS | 5~8 m |
FGA1306-LED100 | 100W | 14700 lm | 260x275x235 | 2.4~3.1 KGS | 6~10 m |
FGA1306-LED100/Y | 100W | 14700 lm | 260x275x235 | 2.4~3.1 KGS | 6~10 m |
FGA1306-LED120 | 120W | 17600 lm | 260x275x235 | 2.4~3.1 KGS | 6~12 m |
