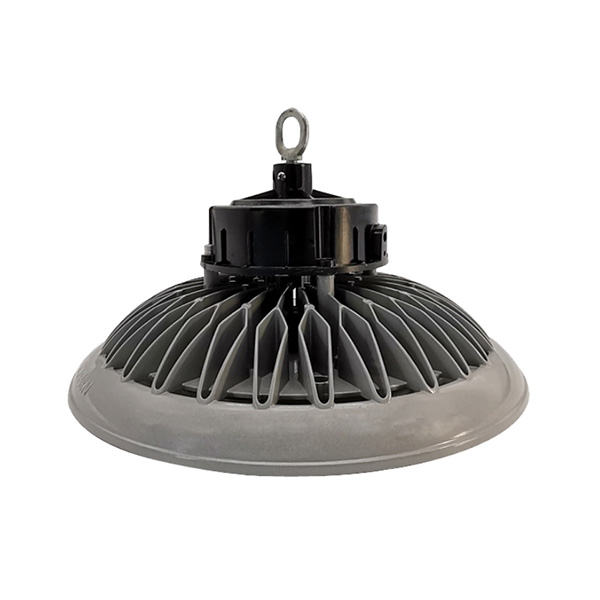

FGA6322 Series Weatherproof LED High Bay
Features• Waterproof, Dustproof & Corrosion-proof
• Die Cast Aluminum Housing
• Corrosion-proof Powder Coating
• Frosted PC or Tempered Glass Diffuser Optional
• Top Brand SMD LEDs
• Installation: Bracket Mount, Hang Mount
• 5 Years Warranty
Description
Classifications
Input Voltage: 176-264VAC, 50/60Hz
PF ≥ 0.95
IP66 Waterproof & Dustproof
WF2 Corrosion-proof
Ambient Temperature –40℃~55℃
CCT 5700K Standard, others optional
Specification
Model | Wattage | Lumens | Weight | Mount Height |
FGA6322-LED50 | 50W | 7450 lm | 2.8 KGS | 3~5 m |
FGA6322-LED60 | 60W | 8900 lm | 2.8 KGS | 3~5 m |
FGA6322-LED70 | 70W | 10300 lm | 3.2 KGS | 4~6 m |
FGA6322-LED80 | 80W | 11800 lm | 3.2 KGS | 5~8 m |
FGA6322-LED100 | 100W | 14700 lm | 3.2 KGS | 5~10 m |
FGA6322-LED120 | 120W | 17600 lm | 3.7 KGS | 6~12 m |
FGA6322-LED150 | 150W | 22000 lm | 4 KGS | 8~15 m |
FGA6322-LED180 | 180W | 26000 lm | 4.2 KGS | 10~18 m |
FGA6322-LED200 | 200W | 29000 lm | 4.2 KGS | 10~20 m |
FGA6322-LED240 | 240W | 35000 lm | 5KGS | 12~25 m |
FGA6322-LED300 | 300W | 43000 lm | 5.5 KGS | 15~30 m |
