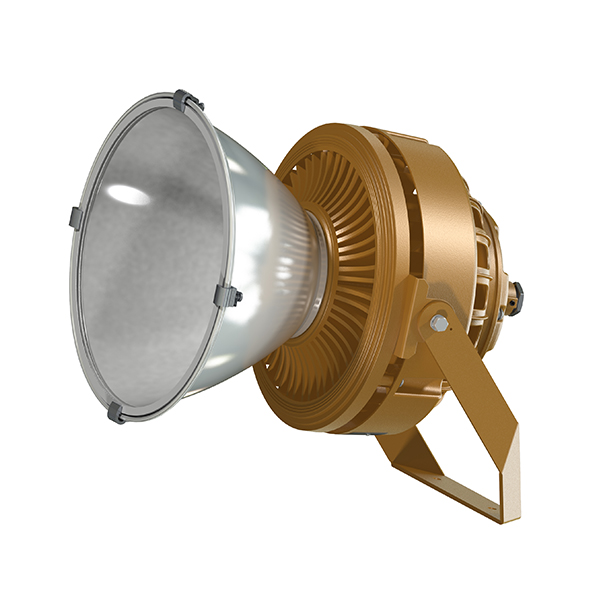

FGV1216 Series Explosion-proof LED High Bay & Floodlight

Features

• Die Cast Aluminum Housing, High Performance Heatsink

• Impact-resistant PC Diffuser

• Corrosion-proof Powder Coating

• Waterproof and Dustproof

• 3/4” G/NPT Hubs, ø9~12.5mm Cable Diameter

• Aluminum Reflector optional

• High Performance SMD LEDs

• Input Voltage 180~260VAC/100-277VAC, 50/60Hz

• PF≥0.95

• Emergency Battery Backup optional

• 5 Years Warranty

• Installation: Wall/Ceiling /Bracket/Pole Mount, Pipe Hanging

Back to list

Description

Classifications

Zone 2; 21, 22

Class I/II, Division 2

Ex-marking:II 3G Ex nR IIC T5 Gc

II 3D Ex tc IIIC T95℃ Dc IP66

Certificates: ATEX,IECEx

IP66

WF2

CCT 5700K Standard, Others Optional

Ambient Temperature –40℃~55℃

Specifications
